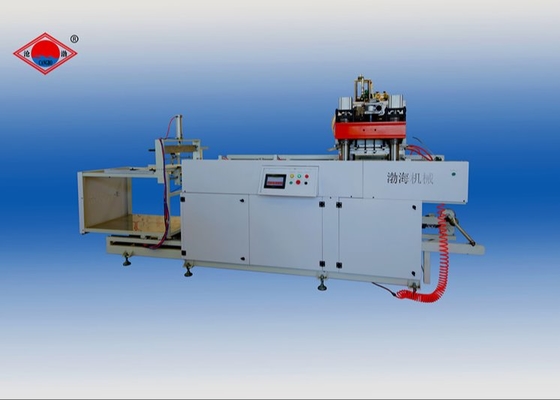

Semiautomatic Lunch Box Pla Blister Vacuum Forming Machine Three Station

I'm Online Chat Now

Semiautomatic Lunch Box Pla Blister Vacuum Forming Machine Three Station

Semiautomatic Lunch Box Pla Blister Vacuum Forming Machine Three Station
Semiautomatic Lunch Box Pla Blister Vacuum Forming Machine Three Station

Large Image :  Semiautomatic Lunch Box Pla Blister Vacuum Forming Machine Three Station

Product Details:
Place of Origin: China
Brand Name: BoHai
Certification: CE
Model Number: BH-7177
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Container
Delivery Time: 20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Two in a month
Detailed Product Description
Max.Forming Height(mm): 150 Mm Color: Customized
Core Components: PLC Showroom Location: None
Suitable Sheet: PP, PS, HIPS, PET, PVC, PLA Heating Power: 56KW
Sheet Thickness(mm): 0.3 - 1.8 Mm Weight (T): 2.5T
High Light:

pla blister vacuum forming machine

,

semiautomatic blister vacuum forming machine

,

pla lunch box blister forming machine

Semi-Automatic Blister Forming MachineThree Stationlunch Box



Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming,


Max. Forming Area
650mm x 300mm
Max. Forming Depth
125mm
Sheet thickness
0.3-1.8mm
Sheet Width
650mm
Max. Forming Speed
35times/min
Air pressure
0.6-0.8mpa
Air consumption
2.0 m³/min
Water consumption
0.5 m³/h
Power supply
AC 380V, 50Hz, Three-phase, Four-wire
Used power
69Kw
Rated power
98Kw
Dimension
L8500*W2200*H2700mm
Weight
About 5T



cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.
